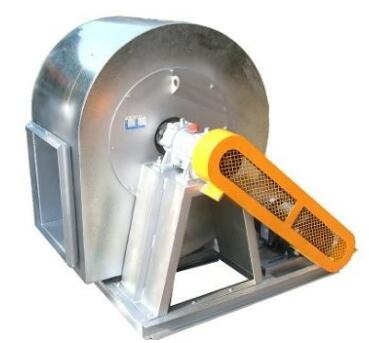

W5-47 Series High temperature centrifugal ventilation fan

W5-47 Series High temperature centrifugal ventilation fan

W5-47 Series High temperature centrifugal ventilation fan,W5-47 Series High temperature centrifugal blower,W5-47 Series High temperature centrifugal ventilator,air blower fan,exhaust fan,suction fan,industrial high temperature fan


  • Brand: YAOSEN MARINE

Details

 1.use

W5-47 series high temperature fans are suitable for conveying high temperature gases with no corrosion, no spontaneous combustion and maximum temperature not exceeding 700 ℃. If the dust content of the gas is large, the dust removal device with dust removal efficiency of not less than 85% should be installed before the fan inlet. In order to improve the service life of the fan. The same intake conditions, the performance of the appropriate can be selected.

2.form

1, this series of fans made into a single inhalation, machine number has 5, 6, 9, and so on.

2. This series of fans can be made into two types, left and right, which can be faced squarely from one end of motor, for example, when the impeller rotates in time to the right, it is expressed as "right", and counterclockwise, it is called left rotating fan, which is expressed as "left".

3, the air outlet position of the fan is expressed by the angle of the shell outlet. "left" and "right" can be made into 0 degrees 45 degrees, 90 degrees 135 degrees and 180 degrees five angles.

3.design feature

1. The impeller is made of heat resistant stainless steel by welding blade, cover and wheel plate, after static, dynamic balance and overspeed test.

2. The shell is welded into cochlea form with steel plate.

3. The transmission unit consists of spindle, radiator, cooling bearing box, water bag belt wheel and so on.
Please contact us and get detailed Technical parameters and Drawings.

We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
