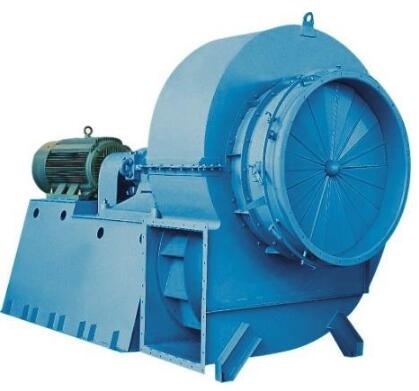

W4-62 Series Industrial High temperature blower fan
1.Usage
W4-62 series high temperature fans are used to transport non-corrosive high temperature gases with a temperature of 200 ℃ and dust content of not more than 150 mg / m ~ 3.
2.Shape type
This series of fans is a single-suction cantilever type C or D drive. Facing squarely from one end of the motor, the impeller rotates clockwise, called right-hand fan, and counterclockwise, called left cyclone.
3.Junction special point
The impeller is welded with heat-resistant stainless steel, the impeller is corrected by static and dynamic balance and overspeed test is carried out to ensure safety and reliability.
The shell is welded into a worm shaped body from the steel plate.
The transmission group consists of spindle, heat-dissipation wheel, water-cooled bearing box and so on.
W4-62 series high temperature fans are used to transport non-corrosive high temperature gases with a temperature of 200 ℃ and dust content of not more than 150 mg / m ~ 3.
2.Shape type
This series of fans is a single-suction cantilever type C or D drive. Facing squarely from one end of the motor, the impeller rotates clockwise, called right-hand fan, and counterclockwise, called left cyclone.
3.Junction special point
The impeller is welded with heat-resistant stainless steel, the impeller is corrected by static and dynamic balance and overspeed test is carried out to ensure safety and reliability.
The shell is welded into a worm shaped body from the steel plate.
The transmission group consists of spindle, heat-dissipation wheel, water-cooled bearing box and so on.
Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement ! - Previous Product:W5-47,W9-19,W4-73 high temperature fan
