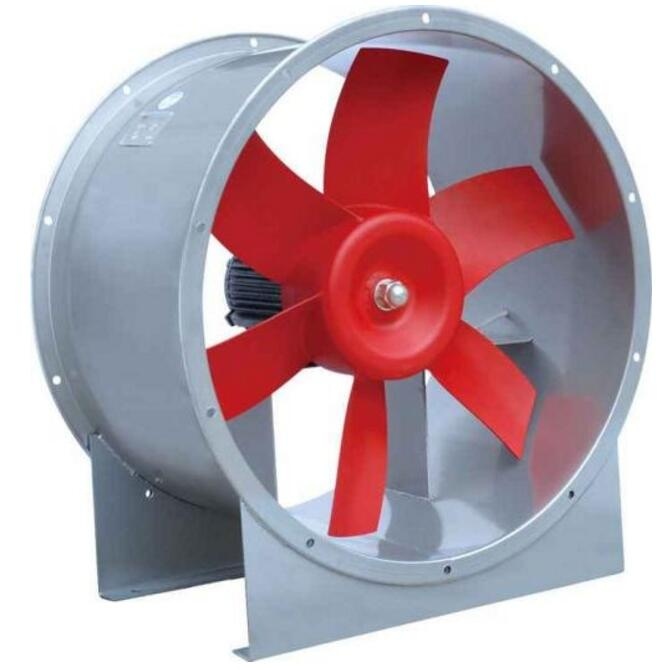

T40 series Industrial fan axial flow fan

T40 series Industrial fan axial flow fan
  • T40 series Industrial fan axial flow fan
  • T40 series Industrial fan axial flow fan
  • T40 series Industrial fan axial flow fan
  • T40 series Industrial fan axial flow fan

T40 series Industrial fan axial flow fan,industrial fan,axial flow fan,exhaust fan,industrial ventilation fan,axial flow ventilator fan,industrial exhaust fan,industrial air blower fan,axial fan



 T40 axial fan is 30K4 type (also known as 03-11 type) axial fan to improve the design made.
Due to the modification of the airfoil of the original 30K4 fan, the fan adopts a new cylindrical hub structure, which increases the air efficiency of the fan from 67% to 84% and enhances the strength at the root.
T40 axial fan can be used as a general factory, warehouse, office, residential ventilation and other occasions or to enhance heating and cooling purposes, if the chassis removed, you can make a freezer, but also in the longer exhaust pipe Intervals are installed in series to increase the pressure in the pipe.
This series of fan products by the impeller diameter is divided into ten different machine numbers, followed by arrangement № 2.5,3,3.5,4,5,6,7,8,9,10. Each type of blade and can be installed into 15 °, 20 °, 25 °, 30 °, 35 ° five angles.
This series of products are directly connected to the impeller impeller directly mounted on the motor structure, the impeller circumferential speed of not more than 60m / s with three conditions: 2900r / min, 1450r / min, 960r / min. The face of the inlet to see the impeller are counterclockwise rotation.
Due to the different sizes of impeller diameter, blade mounting angle and spindle speed, the air volume, air pressure and power consumption also vary. The air pressure ranges from 31Pa to 473Pa and the air volume from 564m3 / h to 48200m3 / h. (See performance table)
The gas passing the fan should be non-flammable, non-explosive, non-corrosive, non-viscous material and significant dust, the temperature must not exceed 45 ℃.
The fan from the impeller, chassis, wind collector three parts.
Impeller Department: from the leaves, hubs, leaves Department of arc sheet, made of sheet metal stamping, according to the required installation angle welding on the outer cylindrical wheel.
Chassis Department: the hair dryer, base and support and other components, are made of thin steel and profiles. Drum is straight cylindrical, with a certain gap between the impeller.
Collector Department: In order to reduce the loss of airflow into the mouth, the collector made of circular arc streamlined by the thin steel stamping or spinning press spinning forming.

Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
