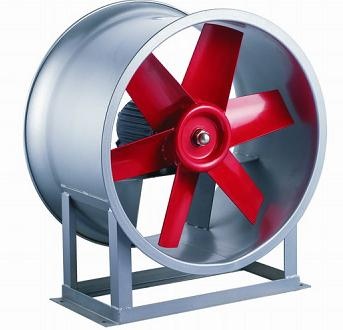

T30A Industrial axial flow fan

T30(A) Series Industrial Direct driven Axial Fan

1. Applications
(1) Industrial boiler, Garbage incinerator.Industrial waste heat recovery device.
(2) Cooling and heat dissipation
(3) Forced Ventilating: Generally used in ventilating for normal industrial and Large-scale buildings.
(4) Gas and materials transfer: General air delivery, Combustible gas delivery, Corrosive gas delivery, Gas mixed with impurity delivery.
(5) Eliminate dust and Particulate matter: Transfer the coal powder, Particle material, Powder material, Fragment materials, Fiber materials.

2. Structure
(1) Impeller:
Pre-curved design with arc.high pressure ,by dynamic and static balance test .high effiiciency ,small vibration.
(2) Case:
With ordinary steel plate welded into a whole worm shell.
(3) Air inlet:
Make constriction type streamline the oveall structure,bolted on the front cover.
(4) Transmission Parts :
Include main shaft, bearing housing, belt or coupling and so on.
(5) Motor: motor brands can according customers' requirments.
(6) Accessory: Adjusting door, Silencer,Absorber

3. Outline dimensions
Diameter:300~1200mm
Air flow rate:1000~37000M3/H
Pressure:26~652PA
Power:0.25~5.5KW
Frequency: 50/60HZ
Brand:Yaosen Marine
